INTERR. DIF. 40A 30 MA - EZ9R33340
Ref: 21.37.068 Cód: EZ9R33340 Marca: Schneider Electric

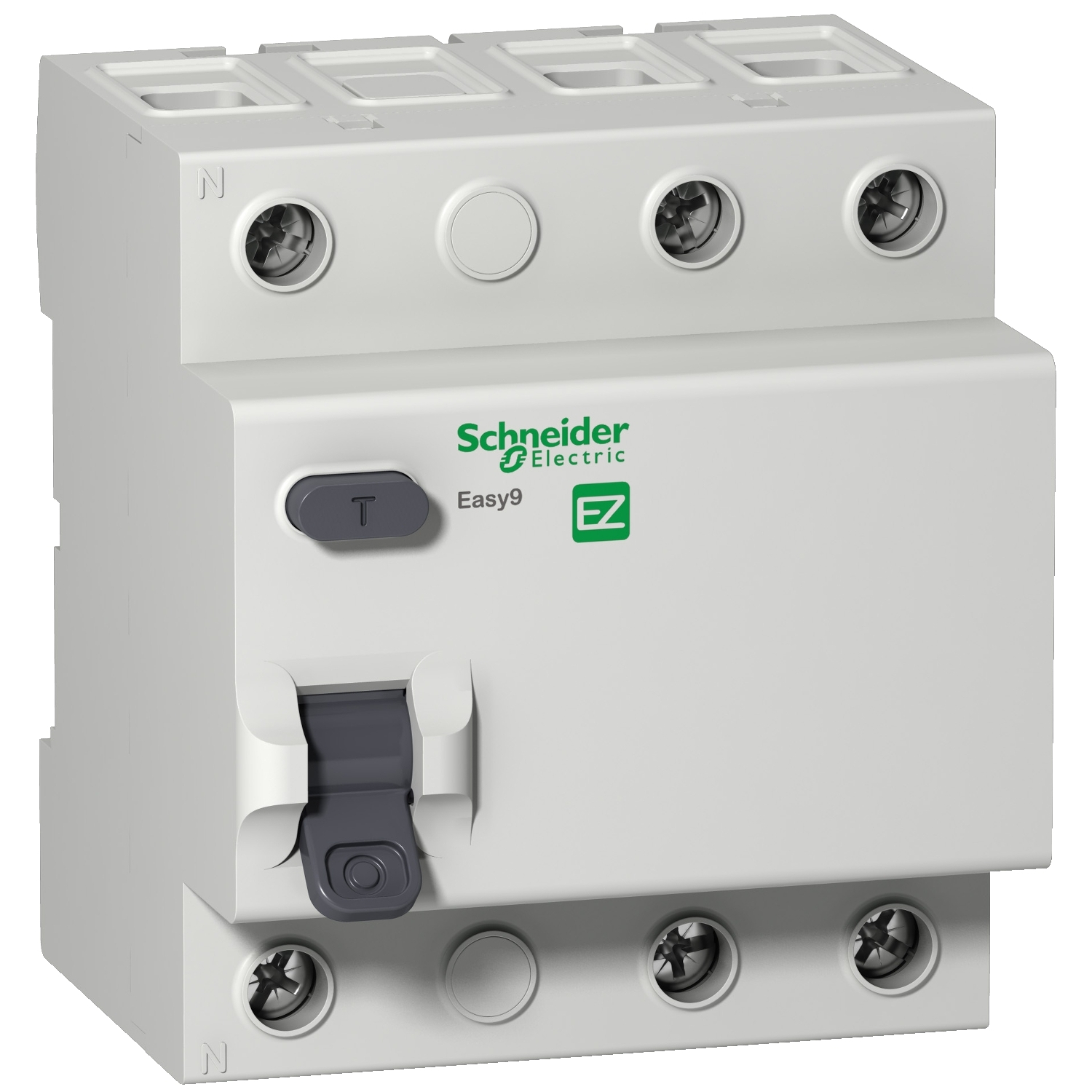

Interruptor diferenciaL IDR Easy9 3P 40A tipo AC 30mA 3kA
O interruptor diferencial residual IDR de baixa tensão Easy9 de Schneider Electric é fabricado para a proteção de pessoas contra choques elétricos e proteção de instalações contra riscos de incêndio devido à corrente de falta à terra persistente. Este produto possui 3 polos, capacidade de 40A, classe de proteção de tipo AC, sensibilidade de fuga à terra de 30mA e capacidade de interrupção de 3kA, 127/230V. Este produto está em conformidade com IEC 61008-1. Os interruptores diferenciais residuais Easy9 levam o selo Green PremiumTM, que promete conformidade com as mais recentes regulamentações, transparência nos impactos ambientais, produtos circulares e com baixo teor de CO2.
Documentos:
Product Data SheetDeclaração de Conformidade - EZ9R33340 Declaração RoHS da ChinaDeclaração de Conformidade - EZ9R33340 Declaração RoHS da UEDeclaração de Conformidade - EZ9R33340 Declaração REAChComplementar | |
frequência da rede | 50 Hz |
altura | 82 mm |
indicação de posição do contato | sim |
localização do dispositivo no sistema | de saída |
desvios de 9 mm | 8 |
suporte de montagem | calha DIN |
compatibilidade do bloco de distribuição do barramento combinado | parte superior: sim |
corrente de sobretensão | 250 A |
Peso | 405 g |
conexões - terminais | terminal tipo túnel (superior ou inferior1-35 mm² rígido |
conexões - terminais | terminal tipo túnel (superior ou inferior1-25 mm² flexível |
tipo de controle | alavanca articulada |
tecnologia de disparo de corrente residual | independente da tensão |
[Ui] tensão de isolamento nominal | 440 V CA |
modo de montagem | de encaixe |
durabilidade elétrica | AC: 2000 ciclos 230 V CA 50 Hz |
[Uimp] tensão suportável de impulso nominal | 4 kV |
cor | cinza (RAL 7035) |
largura | 72 mm |
profundidade | 72 mm |
torque de aperto | 3.5-3.5 N.m superior ou inferior |
durabilidade mecânica | 5000 ciclos |
[Ue] tensão de operação nominal | 127/230 V CA 50 Hz |
Meio ambiente | |
temperatura ambiente do ar para armazenamento | -40-85 °C |
umidade relativa | 95-95 % a 55-55 °C |
graus de poluição | 2 para IEC 61008-1 |
grau de proteção IP | IP20 |
padrões | IEC 61008-1 |
tropicalização | 2 |
temperatura ambiente do ar para funcionamento | -5-60 °C |
certificações do produto | ISI |
certificações do produto | CE |
Principal | |
[In] corrente nominal | 40 A |
linha de produto | Easy9 |
classe de proteção de fuga à terra | Classe AC |
sensibilidade de fuga à terra | 30 mA |
capacidade de fechamento e corte nominal | 500 A |
atraso de proteção de fuga à terra | instantâneo |
tipo de produto ou componente | Interruptor diferencial (DR/IDR) |
tipo de rede | CA |
descrição de polos | 3P |
posição neutra | esquerda |
nome abreviado do dispositivo | DR Easy9 |
corrente de curto-circuito condicional nominal | Disjuntor modular Easy9: 3000 A 40 A |
