DISJ MONOF. 1P C - 32 A - EZ9F33132
Ref: 21.37.114 Cód: EZ9F33132 Marca: Schneider Electric

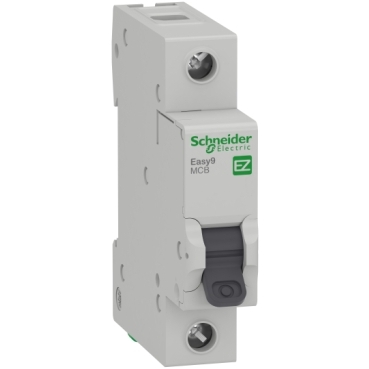

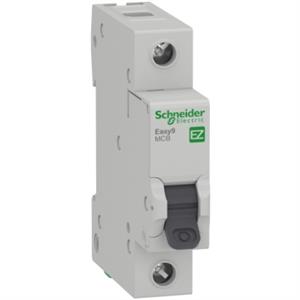

Disjuntor Easy9 1P 32A 3kA 230V CA curva C
O interruptor, ou disjuntor, termomagnético Easy9 de baixa tensão da Schneider Electric é fabricado para proteção contra sobrecargas e curtos-circuitos, graças ao seu sistema de proteção termomagnética. Este produto possui 1 polo, capacidade de 32A, curva de atuação tipo C e capacidade de interrupção de 3kA, 230V CA. Este disjuntor termomagnético tem proteção IP20 e pode ser montado em trilho DIN. Este produto está em conformidade com IEC 60898-35 Os interruptores termomagnéticos Easy9 levam o selo Green PremiumTM, que promete conformidade com as mais recentes regulamentações, transparência nos impactos ambientais, produtos circulares e de baixo CO2.
Documentos:
Product Data SheetDeclaração de Conformidade - EZ9F33132 Declaração RoHS da UEDeclaração de Conformidade - EZ9F33132 Declaração RoHS da ChinaDeclaração de Conformidade - EZ9F33132 Declaração REAChComplementar | |
frequência da rede | 50/60 Hz |
[Ics] capacidade de corte nominal em serviço | 3 kA 100 % x Icn a 230 V CA 50/60 Hz para IEC 60898-1 |
altura | 81 mm |
indicação de posição do contato | sim |
suporte de montagem | calha DIN |
conexões - terminais | terminal tipo túnel (superior ou inferior1-25 mm² rígido |
conexões - terminais | terminal tipo túnel (superior ou inferior1-16 mm² flexível |
tipo de controle | alavanca articulada |
[Ui] tensão de isolamento nominal | 500 V CA 50/60 Hz para IEC 60898-1 |
modo de montagem | de encaixe |
desvios de 9 mm | 2 |
limite de disparo magnético | 5...10 x pol |
durabilidade elétrica | 4000 ciclos |
[Ue] tensão de operação nominal | 230 V CA 50/60 Hz |
[Ue] tensão de operação nominal | 127 V CA 50/60 Hz |
sinalização local | Sem |
[Uimp] tensão suportável de impulso nominal | 4 kV para IEC 60898-1 |
cor | cinza (RAL 7035) |
largura | 17.7 mm |
profundidade | 73.6 mm |
torque de aperto | 3.5-3.5 N.m superior ou inferior |
durabilidade mecânica | 10000 ciclos |
Meio ambiente | |
tropicalização | 2 |
temperatura ambiente do ar para armazenamento | -40-85 °C |
umidade relativa | 95-95 % a -25-60 °C |
grau de proteção IP | IP20 para IEC 60529 |
graus de poluição | 2 |
padrões | IEC 60898-1 |
temperatura ambiente do ar para funcionamento | -25-60 °C |
certificações do produto | INMETRO |
Principal | |
Curva de Tempo-Corrente | C |
[In] corrente nominal | 32 A |
número de polos protegidos | 1 |
tipo de rede | CA |
capacidade de corte | 3000 A Icn a 230 V CA 50/60 Hz para IEC 60898-1 |
capacidade de corte | 5000 A Icn a 127 V CA 50/60 Hz para IEC 60898-1 |
gama | Easy9 |
tipo de produto ou componente | disjuntor modular |
adequação para isolamento | sim para IEC 60898-1 |
aplicativo do dispositivo | distribuição |
nome abreviado do dispositivo | Disjuntor modular Easy9 |
tecnologia da unidade de disparo | termomagnético |
descrição de polos | 1P |
