CHAVE VCF5 - 125A
Ref: 21.35.018 Cód: VCF5 Marca: Schneider Electric

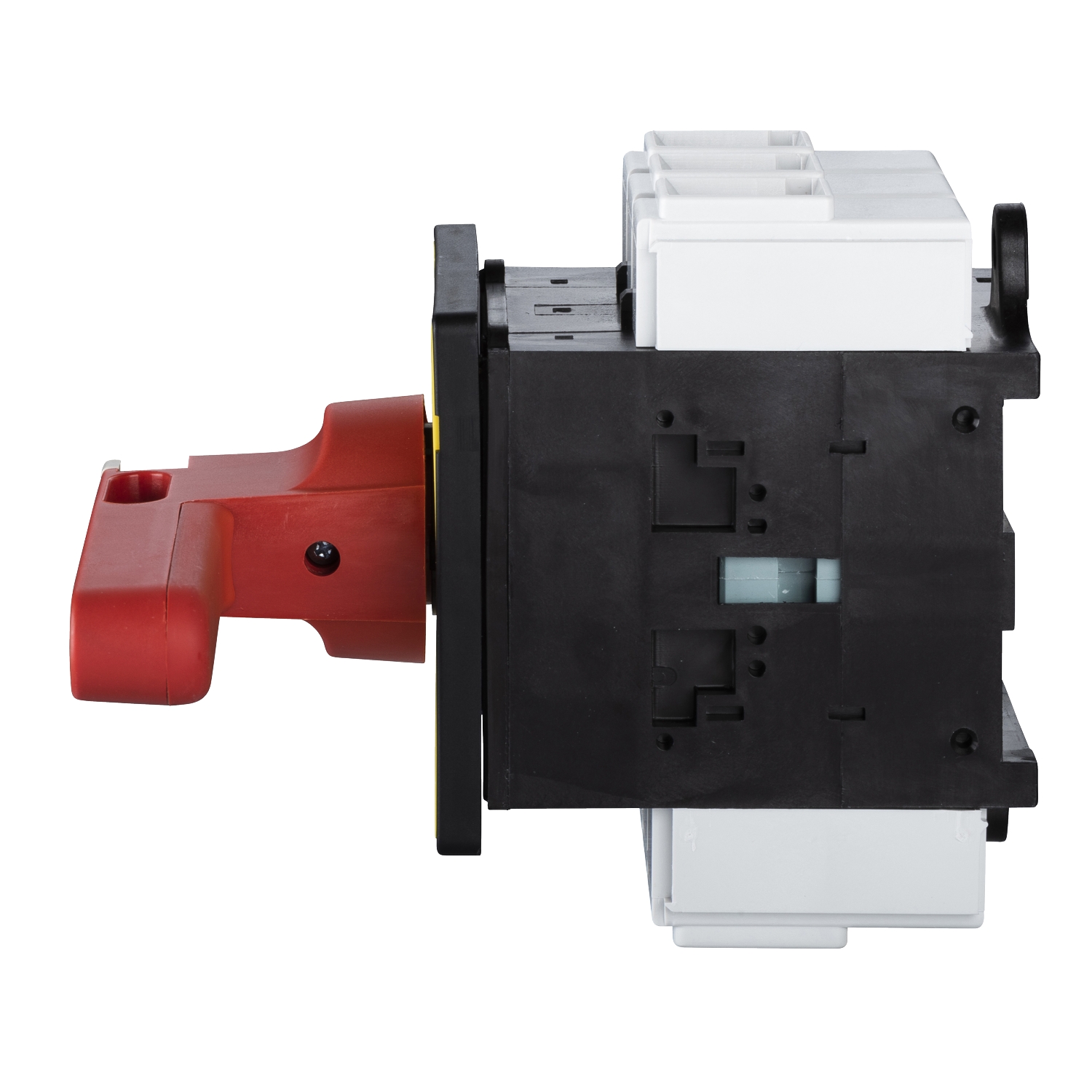

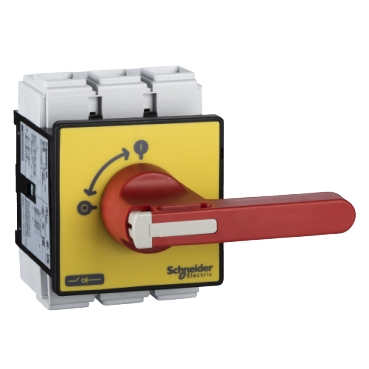

CHAVE SECCIONADORA VARIO 125A MANOPLA VERMELHA/AMARELA VCF5
Chave seccionadora TeSys Vario para montagem em porta, 3 polos, 125A/690V, para aplicações de comutação de motores até 37kW@400V AC-23. Unidade completa composta por um corpo de interruptor V5, uma manopla vermelha com placa frontal amarela 90x90mm KCF3PZ. Destinado ao uso de desconexão do interruptor de parada principal e de emergência. alça bloqueável, para 3 cadeados (a encomendar em separado). maçaneta com 4 parafusos de fixação na porta, garantindo IP65 à fixação. Certificação multipadrões (IEC, UL, CSA, CCC, EAC, Marine), compatível com Green Premium (RoHS/REACh).
Documentos:
Product Data SheetDeclaração de Conformidade - VCF5 Declaração RoHS da ChinaDeclaração de Conformidade - VCF5 Declaração RoHS da UEDeclaração de Conformidade - VCF5 Declaração REAChDeclaração de Conformidade - VCF5 Declaração RoHS da UEDeclaração de Conformidade - VCF5 Declaração REAChDeclaração de Conformidade - VCF5 Declaração RoHS da UEDeclaração de Conformidade - VCF5 Declaração REAChDeclaração de Conformidade - VCF5 Declaração RoHS da UEDeclaração de Conformidade - VCF5 Declaração REAChComplementar | |
capacidade de corte | 1000 A a 400 V (CA -21A) |
capacidade de corte | 1000 A a 400 V (CA -22A) |
capacidade de corte | 1000 A a 400 V (CA -23A) |
potência de funcionamento nominal em W | 22 kW a 230...240 V (CA-3) |
potência de funcionamento nominal em W | 30 kW a 400..0,415 V (CA-3) |
potência de funcionamento nominal em W | 30 kW a 690 V (CA-3) |
potência de funcionamento nominal em W | 37 kW a 500 V (CA-3) |
potência de funcionamento nominal em W | 37 kW a 690 V (CA -23A) |
potência de funcionamento nominal em W | 45 kW a 500 V (CA -23A) |
potência de funcionamento nominal em W | 22 kW a 230...240 V (CA -23A) |
potência de funcionamento nominal em W | 37 kW a 400..0,415 V (CA -23A) |
corrente de curto-circuito condicional nominal | 10 kA a 400 V - fusível Associado 125 A aM |
corrente de curto-circuito condicional nominal | 10 kA a 400 V - fusível Associado 125 A gG |
[Icw] corrente nominal de curta duração admissível | 1500 A a 400 V duração: 1 s |
durabilidade mecânica | 30000 ciclos |
padlocking manopla rotativa | 1 a 3 cadeados 4-8 mm |
[Ue] tensão de operação nominal | 690 V CA 50/60 Hz |
altura | 125 mm |
classe de serviço intermitente | 30 |
[Ith] corrente térmica ao ar livre convencional | 125 A |
modo de fixação | por 4 parafusos of manusear |
[Ithe] corrente térmica convencional em isolamento | 100 A |
sinalização | 0 - 1 |
dimensão da base | 90 x 90 mm |
Peso | 1.2 kg |
capacidade de fechamento | 1.250 A a 400 V CA -21A |
capacidade de fechamento | 1.250 A a 400 V CA -22A |
capacidade de fechamento | 1.250 A a 400 V CA -23A |
[Uimp] tensão suportável de impulso nominal | 8 kV |
conexões - terminais | circuito de potência: terminais de braçadeiras roscadas cabo 95-95 mm² - rigidez do Cabo: sólido |
conexões - terminais | circuito de potência: terminais de braçadeiras roscadas cabo 70-70 mm² - rigidez do Cabo: flexível - com extremidade do cabo |
[Icm] capacidade de fechamento nominal em curto-circuito | 2.8 kA a 400 V a Ipeak |
durabilidade elétrica | 30000 ciclos CA-21 |
durabilidade elétrica | 30000 ciclos CC-1...5 |
[Ie] corrente nominal de operação | 68.5 A CA-23 Ue: 400 V |
suporte de montagem | manusear: porta |
suporte de montagem | Interruptor: porta |
compatibilidade de gama | principal chave seccionadora |
largura | 90 mm |
torque de aperto | circuito de potência: 22.6-22.6 N.m - Ligar terminais de braçadeiras roscadas |
composição do dispositivo | interruptor |
composição do dispositivo | manusear |
Meio ambiente | |
força mecânica | vibrações 10 ... 150 Hz (1 gn para IEC 60068-2-6 |
força mecânica | choques 11 ms (30 gn para IEC 60068-2-27 |
resistência a incêndios | 960 °C para IEC 60695-2-1 |
tratamento de proteção | TC |
grau de proteção IP | IP20 para IEC 60529 |
grau de proteção IP | IP65 |
padrões | IEC 60947-3 |
temperatura ambiente do ar para funcionamento | -20-50 °C |
certificações do produto | CCC |
certificações do produto | CSA |
certificações do produto | GL |
certificações do produto | UL |
Principal | |
estilo de montagem para punho giratório | direto |
tipo de rede | CA |
tipo de rede | CC |
cor da placa frontal do punho | amarelo |
tipo de controle | punho giratório |
tipo e composição dos contatos | 3 NA |
gama | TeSys |
nível de desempenho | alto desempenho |
nome do produto | TeSys VARIO |
cor do punho | vermelho |
tipo de produto ou componente | seccionador Interruptor de paragem de emergência |
adequação para isolamento | sim |
nome abreviado do dispositivo | VCF |
descrição de polos | 3P |
